RANGER kit is designed for bringing you power and taste satisfaction with an eye on aesthetic design, a perfect combination of form and function. It is powered by dual replaceable 18650 batteries (not included) with a maximum wattage output of 200W. Comes with a rugged aluminum alloy tank with 3.8mL capacity. Supports variable voltage, variable wattage, and temperature control. Unique custom modes provide you with a wide series of vaping options.

THE KIT INCLUDES

1 x Ranger Mod (200W)

1 x Ranger Tank (3.8mL)

1 x Milli Mesh Coil (0.15Ohm)

1 x Milli Coil (NiCr 0.4Ohm)

1 x Glass Tube

1 x USB Cable

1 x Manual

LED Strip Indicator

Cool & Stylish

• In Beginner/Intermediate Mode

• In intermediate TC/Expert Mode
Lights up in the same color as the theme (blue/yellow/red) of the main interface

EXPLODED REVIEW

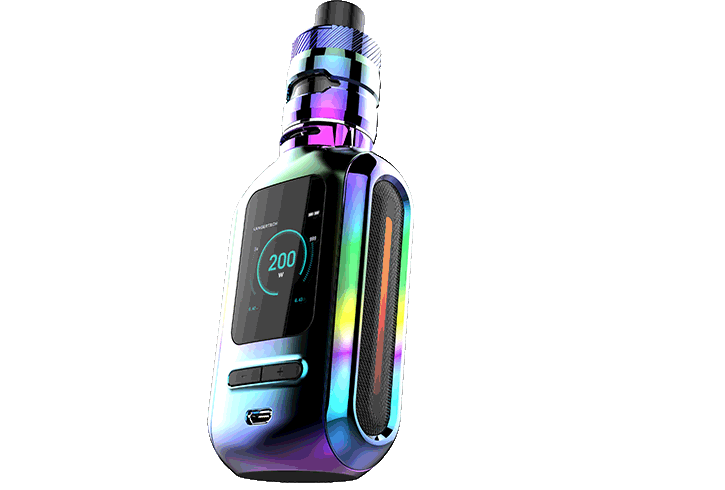

RANGER MOD Specifications

Dual 18650 Batteries

5-200W Power

OLED Display

0.05 - 3.0Ω Coil Resistance

510 Thread

100℃ - 315℃ Temperature Control

Output Modes: VW/TC NI/TC TI/TC SS/M1/M2

Charging: Micro-USB, DC 5V/2A

Weight:145g

5 – 200W Output Powered by Dual 18650 Batteries

The Ranger Kit powered by dual 18650 batteries and rated for 200 watts, which can meet a wide range of power needs.

Ergonomic & Streamlined Design

Maximize Comfort When Vaping

• Ergonomic Shape

• Compact Size

• Smooth Corners

• Sleek Surface

THREE VAPING MODES
Geared for all levels of vapers
• Support for adjusting the wattage
• Support for adjusting the wattage or temperature.
• Support VW/TC NI/TC TI/TC SS modes
• Support M1 / M2 modes
• Support VW/TC NI/TC TI/TC SS modes
• Support for adjusting the parameter of each corresponding work time

Comprehensive Protection

High Temperature Protection

When the temperature of PCB exceeds 85℃, the device will stop functioning and the screen will display “TEMP HIGH”

Low Resistance Protection​

The screen will display “LOW RESISTANCE” when the resistance value of the coil is less than 0.10Ω.

 Low Voltage Protection

When the battery is running out, the screen will display “LOW POWER” and the user needs to recharge the battery.

Over Time Protection

When a puff takes longer than the set work time, the device will stop functioning and indicate “OVER TIME”

Short Circuit Protection

When the atomizer is short circuited, the screen will display “ATOMIZER SHORT” and the device will stop functioning.

Open Circuit Protection

When the atomizer isn’t connected with the battery or the resistance of the coil is higher than 5.0Ω, the resistance will display a resistance value of “9.99Ohm”. Press the fire button and the screen will display “CHECK ATOMIZER”

RANGER TANK Specifications

3.8 mL Capacity
510 Thread
Push-to-Open Top Filling System
Impact Resistant
Aluminum Alloy  Bumper
Length: 52mm
Diameter: 26mm
Weight: 50g
Two Type Coils

Milli Mesh Coil (0.15Ohm)

20-100W

Best 40-60W

Milli Coil (NiCr 0.4Ohm)      15-90W

Best 40-60W

Easy Access Top Filling System

01

Push to open the cap

02

Add e-liquid through the slot

03

Push to close the cap
